[vc_row][vc_column][vc_column_text]Boring Mills on Stock

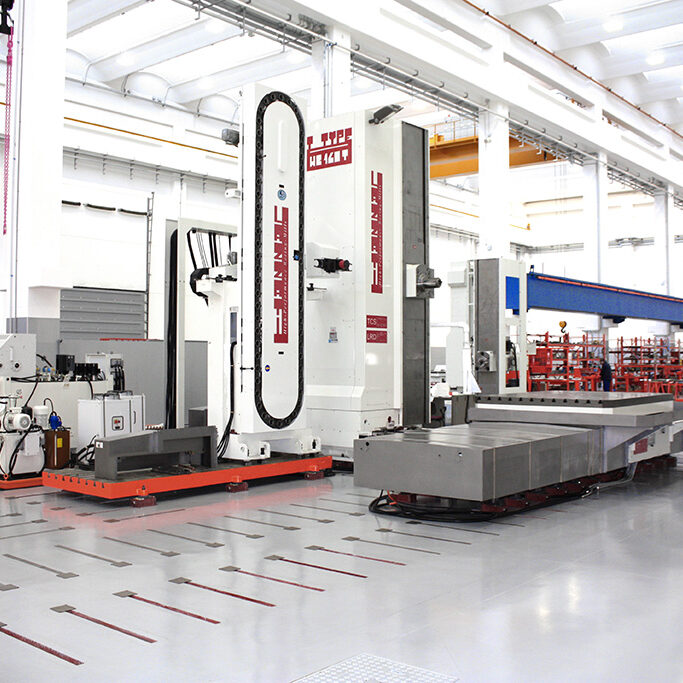

LAZZATI Hydrostatic Horizontal Boring Mills in production for our Stock.

Short Delivery Full Personalization.

Available both Floor-Type and T-Type model with full optional.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_btn title=”Linea T-Type Boring HB 150T” color=”danger” align=”center” link=”url:http%3A%2F%2Fwww.lazzati.eu%2Fprodotti%2Flinea-t-type%2Fboring%2Fhb-150t%2F|target:%20_blank|” button_block=”true”][vc_single_image image=”1432″ alignment=”center” onclick=”link_image”][vc_column_text]

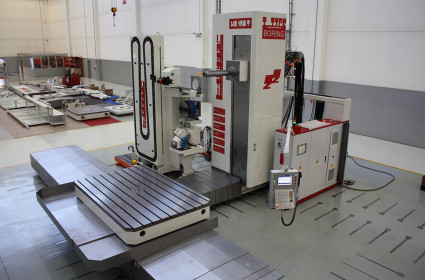

T-Type Boring-Mill:

Spindle Ø150mm – 5.000RPM – 70kW – 3.250Nm
Travels: X=5.000 – Y=3.100 – Z=2.800 – W=900
Rotary Table 30T B=2.000×2.500
Automatic Universal Head 1°x1°
Tool Changer 120tools + Pick-up Station
CNC Heidenhain iTNC640-HSCI

Delivery: 6 month from order

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_btn title=”Linea Floor-Type Ram Boring HB 160MM” color=”danger” align=”center” link=”url:http%3A%2F%2Fwww.lazzati.eu%2Fprodotti%2Flinea-floor-type%2Fram-boring%2Fhb-160mm%2F|target:%20_blank|” button_block=”true”][vc_single_image image=”2318″ onclick=”link_image”][vc_column_text]

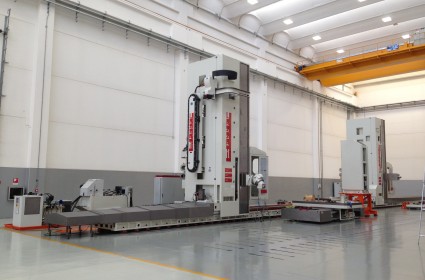

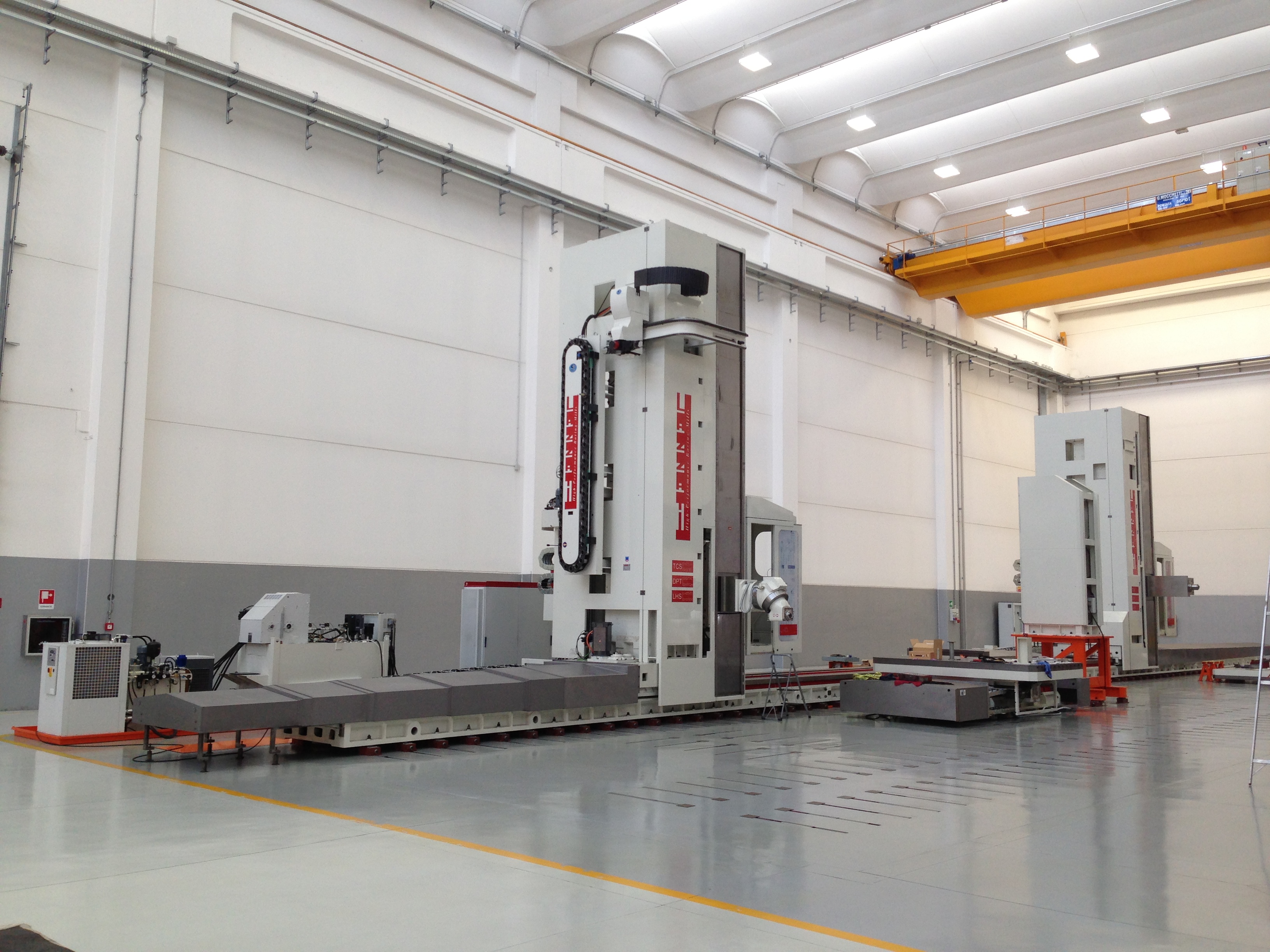

Floor-Type Boring-Mill:

Spindle Ø160mm – 4.000RPM – 80kW – 4.000Nm
Travels: X=14.000 – Y=4.000 – Z=1.300 – W=1.100
Automatic Universal Head 1°x1°
Tool Changer 120tools with Pick-up Station
Floor Plates 15Ton/mq Surface=4.000×10.000
Rotary Travelling Table 30T B=2.000×3.000 V=2.000
CNC Heidenhain iTNC640-HSCI

Delivery: 6 months from order

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”3″][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_btn title=”Linea T-Type Boring HB 130T” color=”danger” align=”center” link=”url:http%3A%2F%2Fwww.lazzati.eu%2Fprodotti%2Flinea-t-type%2Fboring%2Fhb-130t%2F|target:%20_blank|” button_block=”true”][vc_single_image image=”3150″ alignment=”center” onclick=”link_image”][vc_column_text]

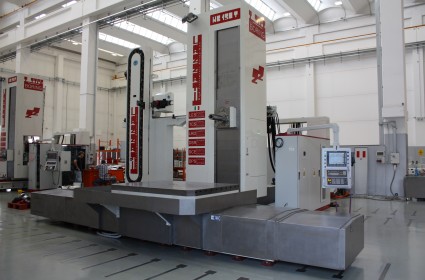

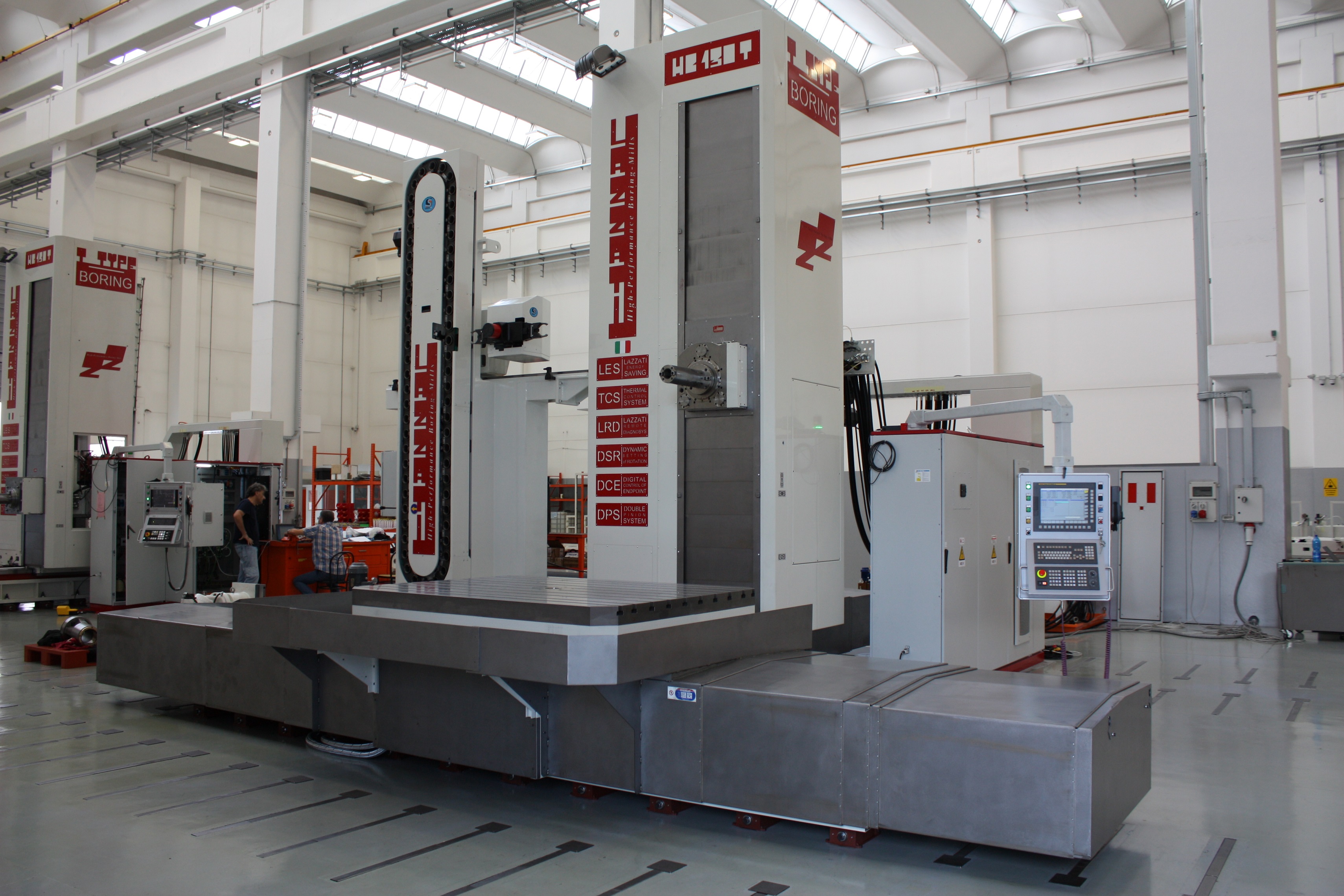

T-Type Boring-Mill:

Spindle Ø150mm – 5.000RPM – 70kW – 1.100Nm
Travels: X=4.000 – Y=2.600 – Z=2.000 – W=900
Rotary Table 15T B=1.800×2.200
Automatic Universal Head 1°x1°
Tool Changer 60tools
CNC Heidenhain iTNC640-HSCI

Delivery: 6 month from order

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_btn title=”Linea Floor-Type Ram Milling HB 2M” color=”danger” align=”center” link=”url:http%3A%2F%2Fwww.lazzati.eu%2Fprodotti%2Flinea-floor-type%2Fram-milling%2Fhb-2m%2F|target:%20_blank|” button_block=”true”][vc_single_image image=”3016″ onclick=”link_image”][vc_column_text]

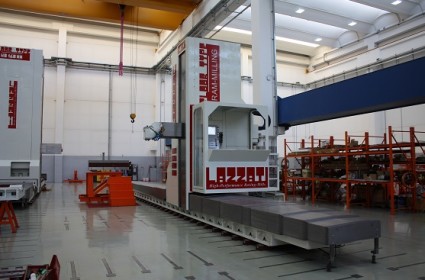

Floor-Type Milling Borer:

Automatic Universal Head 1° x 1° – 6.000RPM – 60kW – 1.000Nm
Travels: X=14.000 – Y=3.000 – Z=1.500
Tool Changer 60tools
Floor Plates 15ton/mq Surface=3.000×10.000
Rotary Travelling Table 30T B=2.000×3.000 W=2.000
CNC Heidenhain iTNC640-HSCI

Delivery: 6 month from

[/vc_column_text][/vc_column][/vc_row]
